Add a New Disconnected Kiosk

To Add a New Machine

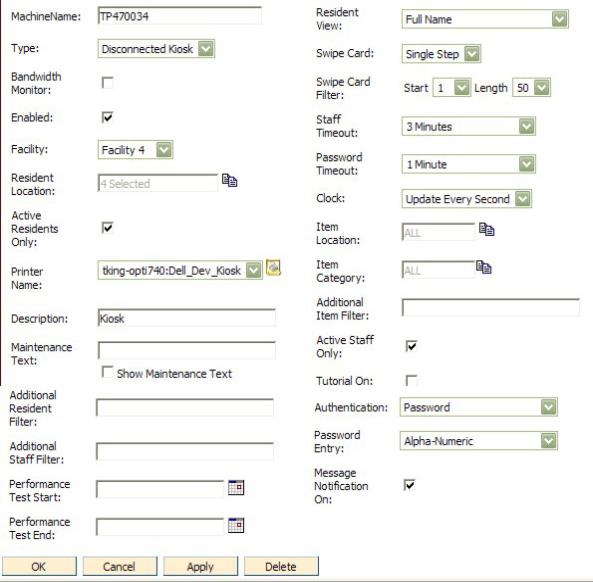

1. From the Machine Maintenance browse window, click Add a New Machine.  A new machine maintenance window will appear similar to the following:

2. Enter appropriate information into the fields provided.

Machine Name - Network name assigned to this machine.

Type - Choose from the drop down list machine type: Disconnected Kiosk. Also available are Workstation, Kiosk and Mobile.  See descriptions for these machine types below.

Click here if setting up a new workstation

Click here if setting up a new kiosk (not disconnected)

Click here if setting up a new mobile device

Click here if setting up a new cache box

Note: It is required that the appropriate number of kiosk licenses are registered to CareTracker before another machine is added.  See “Install Modules and Kits” for more information.

Bandwidth Monitor - Mark this check box to continually poll kiosk sending an alert by email if network or kiosk is not functioning.

Enabled - Mark this check box to activate access for this machine.

Facility - Choose from the drop down list the facility in which this machine is used.

Resident Location - Choose a location from the drop down list to display residents on the kiosk from a specific resident location or all locations.

Active Residents Only - Mark this check box if you only want active residents to display on the kiosk resident list.

Printer Name - Choose from the drop down list the printer where hard copy reports will be printed.

Description - Brief description of the kiosk/machine.

Maintenance Text - Enter text to display on the kiosk to let staff know that maintenance is being performed on the kiosks making them unavailable for use until the maintenance is complete.

Note:  This field is only to be used when it is time to perform the maintenance, as the message will display immediately.

Show Maintenance Text - This field is only to be used when it is time to perform the maintenance, as the maintenance text message will display immediately.

Additional Resident Filter - Residents that are loaded to the kiosk can be filtered using the Resident Filter field.  Default setting excludes all dismissed residents from kiosk view. Please contact your Resource/CareTracker representative for assistance in setting up this filter.

Additional Staff Filter - Staff members that are loaded to the kiosk can be filtered using the Staff Filter field.  Default setting excludes all inactive staff members from kiosk view. Please contact your Resource/CareTracker representative for assistance in setting up this filter.

Performance Test Start - Choose from the calendar the date and time to start kiosk performance testing.

Performance Test End -  Choose from the calendar the date and time for the kiosk performance testing to end.

Resident View - Choose from the drop down list the desired format to be used when displaying the resident name (under the wheelchair) on the kiosk.  Selections include:  Full name, Initials and last name, Initials only, Room number, No resident name, Last name and ID, and Last Name and Room number.

Note: When in kiosk, touch resident icon and the resident's full name will be displayed for five seconds.

Swipe Card - Choose from the drop down list Swipe Card method:

• Single - one swipe takes staff member directly to resident selection window (no password required)
• Multi - Swipe of staff card brings up password window

Swipe Card Filter - If leading/trailing characters need to be read/filtered on a staff swipe card, choose appropriate starting position and length of bar code from drop down lists provided.

Staff Timeout - Choose from the drop down list the number of minutes/seconds the kiosk will wait (with no user input) before going to the Staff Password screen.

Clock - Choose from the drop down list how often the clock on the kiosk should be refreshed or if the clock should be hidden.

Active Staff Only - Mark this check box if you only want to display active staff on the kiosk staff list.

Item Location - Controls which location(s) will be shown on the location screen on the kiosk for Charge or Transfer.

Charges

• If just one location is selected, this selected location will be the default location for each charge on the kiosk.  Any item charged to any resident on that kiosk will be pulled from the selected location.  The location screen will not be displayed on the kiosk.
• If more than one location is selected, then only the selected locations will be displayed on the location selection screen on the kiosk when charging out items.

Transfers

• If only one location is selected, this becomes the default FROM location for that kiosk and the FROM location screen will not be displayed when recording transfers.  The Transfer TO location screen will display all available locations except for the location that has just been selected as the FROM location for the transfer.
• If more than one location is selected, then only the selected locations will be available on the Transfer FROM location screen on the kiosk. The Transfer TO location screen will display all selected locations except the FROM location that has been chosen for the transfer.

Item Category - Controls which items will be displayed on the kiosk for Charge or Transfer based on the item's category.

Additional Item Filter - Items that are loaded to the kiosk can be filtered using the Additional Item Filter field.  Please contact your Resource/CareTracker representative for assistance in setting up this filter.

Note: Items that have been marked as Not in Use will not appear on the kiosk.  This is the default kiosk setting and cannot be changed.

Active Staff Only - Mark this checkbox if you only want to display active staff on the kiosk staff list.  This checkbox is marked by default.

Tutorial On - Mark this checkbox to enter tutorial mode on the kiosk.  This is used in when training staff and does not add assessments to the "live" observation database.

Authentication - Choose from the drop down list, the type of authentication your facility uses at staff log-in. Choices are: Password or Digital Persona Biometrics.

PIN Entry - Allows the user to choose between numeric only PINS and alpha-numeric PINS (which displays a full keyboard instead of a numeric entry form).

Message Notification On - Activating message notification notifies staff of a new message immediately after the staff member logs into the machine.
